Laminated Glass
Specializing in all Commercial and Consumer Glazing Needs
Capabilities
At Midwest Glass Fabricators, we specialize in the process of making custom laminated glass and offer a wide range of products.

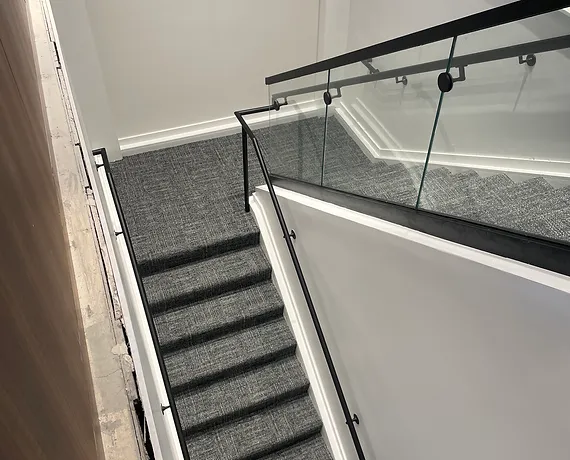

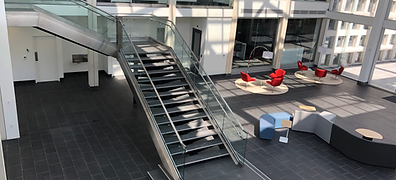

From handrails and canopies to structural and safety requirements MWGF will meet your laminated needs.
Our laminated line is able to run a maximum of 177"x95"
We can do any range of thickness from 1/4" to 3"
* We do not laminate textured glass.
Process
Laminated glass is a type of safety glass produced by bonding two or more glass layers together with an interlayer. The interlayer acts as a cushioning material and is usually made of polyvinyl butyral (PVB). After the interlayer is applied, the glass is placed in an autoclave, a pressure vessel, to heat and pressurize the assembly. This process helps to bond the interlayer to the glass and ensures a strong, durable product. Once cooled, the laminated glass is ready to be used in a variety of applications.
Cut to Size Laminate
Cut to size laminated glass is an alternative way to get the safety and security of laminated glass without the wait time. It is a great solution for when you want a quick turnaround and don't have the time to wait for traditional laminated glass. Cut to size laminated glass is pre-cut from a large sheet of laminated glass, meaning that it can be delivered to you much faster than if you were to order a custom-made piece. It is a great option for those who are looking for a cost-effective and time efficient solution for their glass fabricator needs.
Current make ups we offer:
-
1/4" Clear over Clear. With 0.30" PVB
-
1/4" Bronze over Bronze. With .030" PVB
-
1/4" Grey over Grey. With .030" PVB
*We are currently doing annealed lami cut to size.
Stock Laminated Glass
For the fastest turnaround time to receive your order we are now offering stock laminated glass. With our goal to get this on your next truck this gives you the option for premade sizes and colors.
Clear:
36" x 84"
42" x 84"
48" x 96"
60" x 120"
Grey:
36" x 84"
Bronze:
48" x 84"
Quantity discounts available!
*Sizes are subject to change.
Interlayers
Midwest Glass offers a variety of interlayer options to fit your project. Interlayers are a bonding agent that goes in-between two or more pieces of glass. This allows the glass to remain as one piece when broken.
From canopies and handrails to Bullet Resistant glass, interlayers are the key part of the laminated make up.
Is an interlayer for indoor and outdoor use. This interlayer is used when you need your glass to stay rigid in the case of breakage.
We carry thickness of .035" clear and .031" translucent white.
Is an interlayer for indoor use where there is no moisture present. The interlayer is used to strengthen the glass durability.
We carry a variety of thicknesses: .015", .030", and .060" with color of clear, opaque white, and translucent white.
Is an interlayer that can be used both indoors and outdoors. Unlike PVB it can be used in moist environments.
We carry a variety of thicknesses: .015", and .030" with color of clear, opaque white, and translucent white.
SGP/Ionoplast
PVB
EVA
*Interlayers can be stacked to get the desired thickness.
Additional colors may be available reach out to our Laminated team to inquire
Post Polish
Midwest Glass Fabricators offers high-quality glass fabrication services, including post-polish lami that gives the glass a cleaner look and a smooth finish. Our expert team of fabricators is dedicated to providing the best services in the industry.
Bullet Resistant
This glass is made with multiple layers of laminated glass and is designed to displace the energy of ballistic rounds like those of handguns, assault rifles, and automatic weapons, flattening or catching the bullet(s) and preventing them from penetrating. This will offer the highest level of protection to both property and people.
Bullet-resistant glass is designed to be installed in conjunction with bullet-resistant architectural framing for the maximum effectiveness.
* When bullet resistant glass is installed without reinforced framing, or when existing plain glass is only retrofitted with protective film, a highly secure, bullet-resistant environment is not established.
We are able to meet your security glass needs with bullet resistant glass certifications.
We offer levels 1-9 UL and NIJ 1-4 Certification's.
UL offers no spall, while NIJ offers a low spall option.
If you need additional information regarding Bullet Resistant glass and its applications. Please contact our laminated team.
To view our certifications.
"Bullet Proof Glass"
When we hear the term "Bullet Proof Glass" we think of something impenetrable by bullets and perfectly safe for us for as long as we remain separated from our attackers by the structure. This is a myth because the truth is no glass is completely impenetrable by bullets. The proper term for even the strongest of security glass is "bullet-resistant" glass. This means the glass constitutes a barrier that delays bullet penetration. In other words, it would take multiple bullets to breach the barrier. The caliber and velocity it takes to breach the glass depends on the thickness and material makeup of the barrier and the type of firearm being used. UL (Underwriters Laboratory) has developed the most widely accepted set of quality standards for bullet resistant glass. The classification of resistance is based upon how many shots and from what caliber weapon it takes to penetrate the glass. There are no such things as BULLETPROOF glass.
"Glass Film Stops Bullets"
Glass films are not bullet-resistant by themselves. They only prevent spalling, which is fragmenting and spreading of glass towards the protective side of the glass, which prevents injury from flying glass in an attack. It is not bullet resistant.
"Laminated Glass is Bullet-Resistant"
Laminated glass with a regular interlayer Polyvinyl Butyral (PVB) is not bullet-resistant, it is safety-glass. It is simply glass that holds together when shattered, creating a spider web cracking pattern and preventing the glass from breaking into pieces. It is not bullet resistant.
Acoustics
Laminated glass is an ideal choice for acoustic use because it can effectively reduce the transmission of sound. Laminated glass inherently reduces sound pollution and there are specific interlayers for acoustics that can reduce this even further. This combination helps to absorb and reduce the noise that passes through, making it ideal for use in soundproofing. Laminated glass can be used to create soundproof walls, floors, and other surfaces that can help reduce noise pollution in the home or office.
Hurricane Glass
Midwest Glass Fabricators provides hurricane glass to keep you safe. We can provide superior protection from storm damage and our hurricane glass is designed to be impact resistant and will remain intact during wind, rain, and hail. With our hurricane glass, you can rest assured that your property is safe from the elements. Contact us today to learn more about our hurricane glass and how it can protect your home or business.
*If looking for Miami Dade certification this requires both glass and framing to be certified. We can provide all Hurricane glass needs but not certified for Miami Dade
